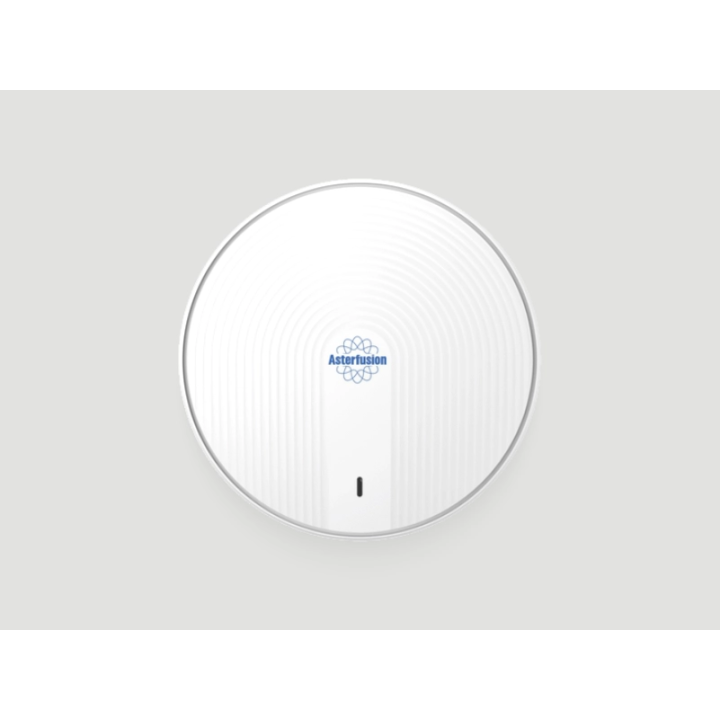

The AP6240 is a high-performance tri-band Wi-Fi 6E access point designed to meet the demands of modern enterprise wireless networks. Powered by the Qualcomm IPQ5018 platform, it delivers up to 8 Gbps of combined wireless throughput while operating simultaneously across the 2.4 GHz, 5 GHz and 6 GHz bands to maximize capacity and reduce network congestion.
Featuring advanced Wi-Fi 6E technologies including OFDMA, MU-MIMO and 1024-QAM, the AP6240 ensures ultra-low latency, high client density and exceptional wireless efficiency. It supports over 100 active users and up to 1,024 connected devices while providing seamless roaming through IEEE 802.11k/v/r and enterprise-grade security with WPA3 and MPSK.
Fully compatible with OpenWiFi, the AP6240 enables flexible network management, cloud integration and firmware customization, making it an ideal solution for enterprise offices, universities, smart manufacturing facilities and public venues.
Specifications
| Specification |
Value |
| Ethernet Interfaces |
1 × 10/100/1000/2500 Mbps RJ45 (PoE In), 1 × 10/100/1000 Mbps RJ45 |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Frequency Bands |
2.4 GHz / 5 GHz / 6 GHz |
| MIMO |
2 × 2 |
| Combined Throughput |
8 Gbps |
| Maximum Data Rate |
574 Mbps (2.4 GHz), 4,804 Mbps (5 GHz), 2,882 Mbps (6 GHz) |
| Multiple SSIDs |
16 (8 per radio) |
| Antenna Type |
Integrated Dual-Band 2×2 Antennas (2.4/5 GHz) + Dedicated 2×2 6 GHz Antennas |
| Antenna Gain |
2 × 4 dBi (2.4 GHz), 2 × 4 dBi (5 GHz), 2 × 4 dBi (6 GHz) |
| Recommended Coverage |
15–20 m |
| Recommended Clients |
100+ |
| Power Supply |
IEEE 802.3at PoE / 12 V DC 1.5 A |
| Max. Power Consumption |
14 W |
| Mounting |
Ceiling |
| Max. Transmit Power |
20 dBm (2.4 GHz), 21 dBm (5 GHz) |
| Dimensions |
186 × 186 × 37 mm |
