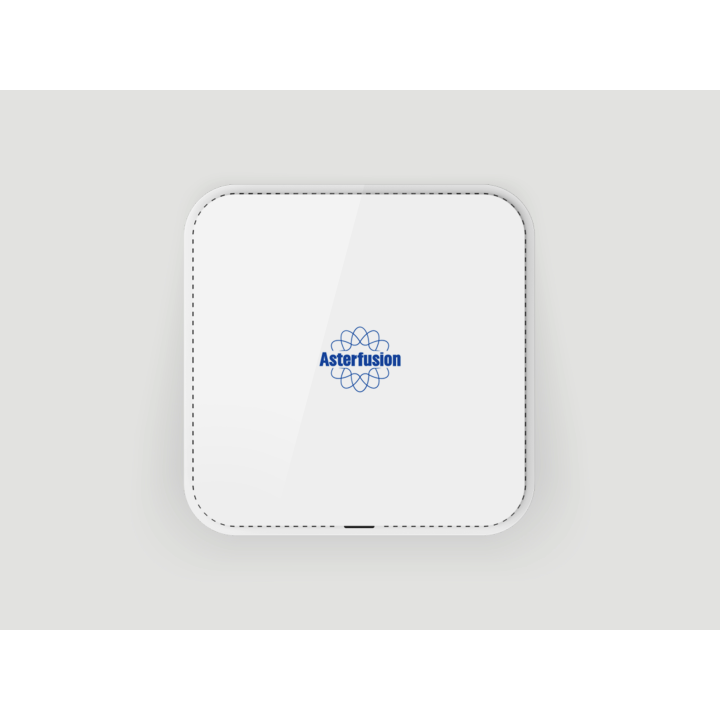

The AP6020 is a high-performance indoor Wi-Fi 6 access point designed to deliver reliable, high-speed wireless connectivity for modern enterprise environments. Featuring dual-band 2×2 MIMO technology, it provides a combined wireless throughput of up to 2.975 Gbps while ensuring excellent coverage, seamless roaming and low latency.
Fully compatible with OpenWiFi, the AP6020 offers an open, scalable and cost-effective wireless infrastructure without vendor lock-in. Enterprise-grade security, multiple SSIDs and efficient client management make it an ideal solution for offices, schools, hotels, healthcare facilities and retail environments.
Designed for ceiling mounting and powered through PoE, the AP6020 provides a discreet installation while simplifying deployment and reducing cabling requirements.
Specifications
| Specification |
Value |
| Ethernet Interface |
1 × 10/100/1000 Mbps RJ45 (WAN), 1 × Serial Port |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Frequency Bands |
2.4 GHz / 5 GHz |
| MIMO |
2 × 2 |
| Combined Throughput |
2.975 Gbps |
| Maximum Data Rate |
573 Mbps (2.4 GHz), 2402 Mbps (5 GHz) |
| Multiple SSIDs |
16 (8 per radio) |
| Antenna Type |
Integrated Omnidirectional Antennas |
| Antenna Gain |
2 × 4 dBi (2.4 GHz), 2 × 4 dBi (5 GHz) |
| Recommended Coverage |
15–20 m |
| Recommended Clients |
50+ |
| Power Supply |
IEEE 802.3at PoE / 12 V DC 1.5 A |
| Max. Power Consumption |
14 W |
| Mounting |
Ceiling |
| Max. Transmit Power |
20 dBm (2.4 GHz), 21 dBm (5 GHz) |
| Dimensions |
186 × 186 × 37 mm |
| Operating Temperature |
-10 °C to 55 °C |
| Operating Humidity |
5–95% (Non-condensing) |
