CX864E-N, Switch Ultra Ethernet IA 64×800Gb, Enterprise SONiC Ready

The CX864E-N is Asterfusion's flagship Ultra Ethernet switch, purpose-built for the next generation of AI, machine learning, HPC and cloud-scale infrastructures. Powered by the Marvell Teralynx 10 ASIC, it delivers an exceptional 51.2 Tbps switching capacity through 64 native 800Gb ports while supporting flexible breakout configurations down to 100Gb.

Running AsterNOS, Asterfusion's Enterprise SONiC-based network operating system, the CX864E-N combines open networking with advanced AI transport technologies including WCMP, INT-driven Routing, Packet Spray and extensive RoCE optimization. A large on-chip packet buffer exceeding 200 MB and hardware-assisted PTP synchronization with 10 ns accuracy ensure deterministic, high-performance networking for the most demanding AI clusters.

Designed for hyperscale AI infrastructures, the CX864E-N provides vendor-independent interoperability with heterogeneous GPU clusters and SmartNICs while delivering the performance and flexibility required by next-generation Ultra Ethernet Consortium (UEC) architectures.

Specifications

Specification	Value

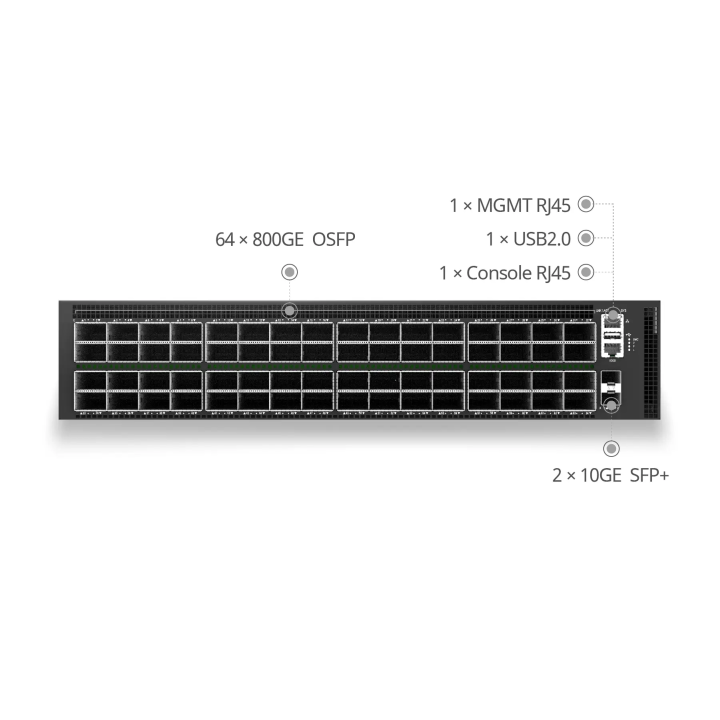

Ports	64 × 800G, 128 × 400G, 256 × 200G, 512 × 100G
Switch ASIC	Marvell Teralynx 10
Switching Capacity	51.2 Tbps
Packet Forwarding Rate	28,700 Mpps
Cut-through Latency	560 ns
Packet Buffer	200+ MB
CPU	Intel Xeon (4/8-Core)
RAM	32 GB SODIMM
SSD	256 GB M.2 SATA / NVMe
USB	1 × USB 2.0
Console	1 × RJ45 Console
Management Port	1 × Gigabit RJ45

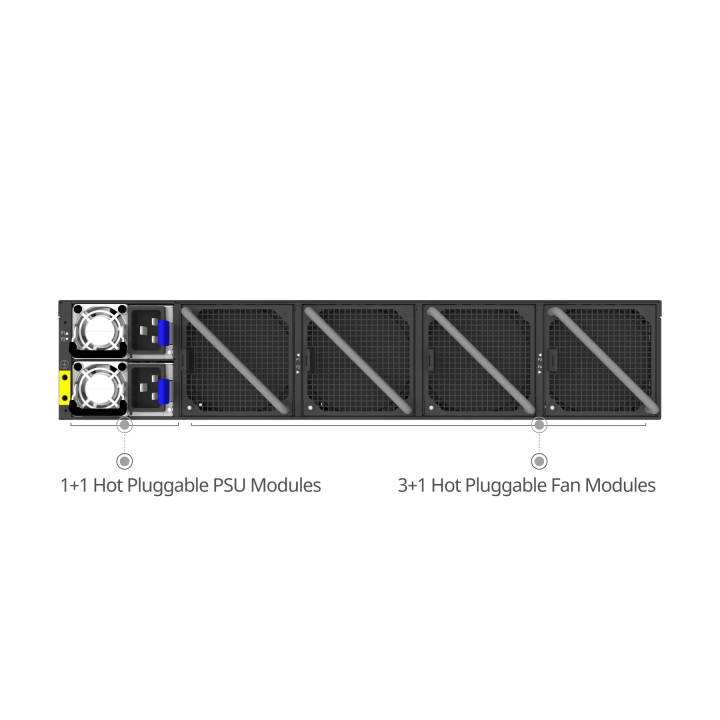

Power Supplies	2 Hot-swappable (1+1 Redundancy)
Fan Modules	4 Hot-swappable (3+1 Redundancy)
Rack Space	2 RU
Dimensions (W × H × D)	440 × 87 × 660 mm
Input Voltage	200–240 V AC / 200–320 V HVDC
Max. Power Consumption	2200 W (64 × 800G SR8 fully populated)
Operating Temperature	0 to 40 °C
Relative Humidity	10–90% (Non-condensing)
