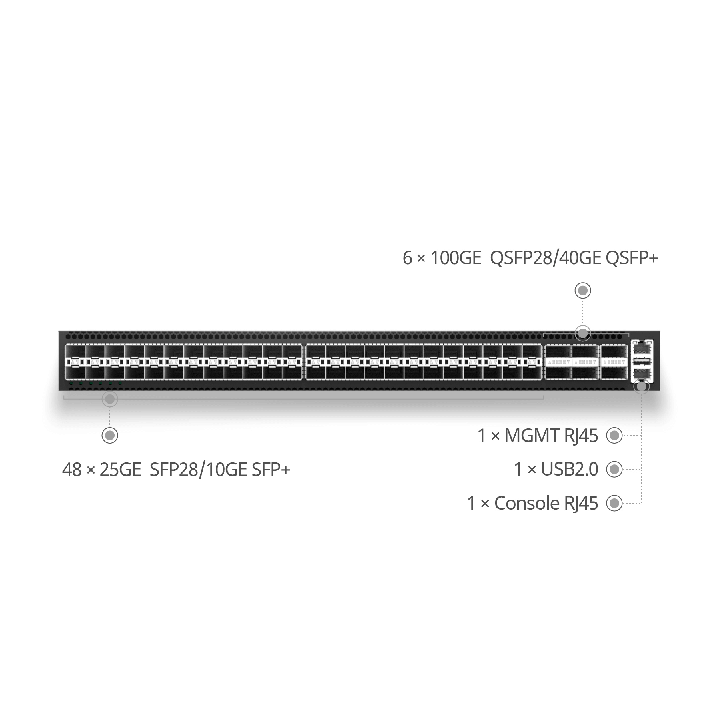

  • 48 × 25Gb SFP28 ports with 6 × 100Gb QSFP28 uplinks
  • Powered by Enterprise SONiC Distribution and Marvell Falcon ASIC
  • Optional dual Marvell OCTEON 10 DPUs for advanced routing and security
  • Supports VXLAN, BGP-EVPN, EVPN Multihoming, PTP and GNSS timing
  • Designed for enterprise core, data center Leaf and service provider edge deployments

The CX306P-48Y-M-H is a high-performance 2.0 Tbps Layer 3 switch built around the Marvell Falcon ASIC and powered by AsterNOS, Asterfusion's Enterprise SONiC-based network operating system. Equipped with 48 × 25Gb SFP28 ports and 6 × 100Gb QSFP28 uplinks, it delivers outstanding performance for enterprise campus cores, cloud infrastructures and modern data centers.

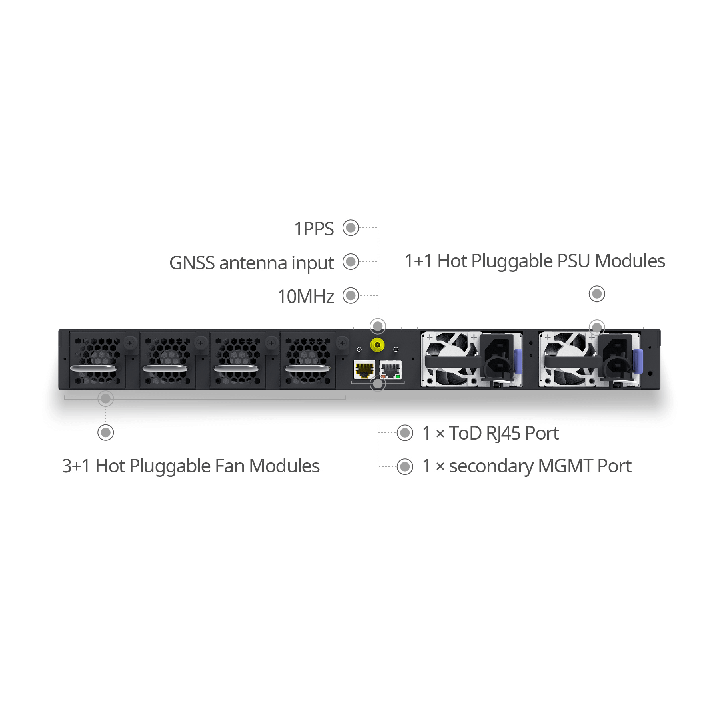

In addition to advanced Layer 2 and Layer 3 capabilities including VXLAN, BGP-EVPN and EVPN Multihoming, the switch supports optional PTP and GNSS synchronization for time-sensitive networking. Optional dual Marvell OCTEON 10 CN103 DPUs add hardware-accelerated routing and security, transforming the platform into an integrated switching, routing and security solution.

Ideal for enterprise campus cores, data center Leaf deployments, 5G edge networks, O-RAN fronthaul and service provider infrastructures, the CX306P-48Y-M-H combines performance, scalability and intelligent networking in a compact 1RU platform.

Specification Value
Ports 48 × 25G SFP28, 6 × 100G QSFP28
Switch ASIC Marvell Falcon
Switching Capacity 2.0 Tbps
Forwarding Rate 2.63 Bpps
SDRAM DDR4 16 GB
SSD Memory 256 GB
Packet Buffer 24 MB
MAC Address Entries 32K
IPv4 Prefix Routes 504K
IPv6 Prefix Routes 252K
Power Supplies 2 Hot-swappable (1+1 Redundancy)
Fan Modules 4 Hot-swappable (3+1 Redundancy)
Power Supply 550 W (AC/DC)
Input Voltage 100–240 V AC / 26–72 V DC
Max. Power Consumption <430 W
Rack Space 1 RU
Dimensions (H × W × D) 44 × 440 × 560 mm
Weight 11 kg
Operating Temperature 0 to 45 °C
Airflow Front to Rear

Optional DPU Specifications

Specification Marvell CN10308 Marvell CN9670
CPU Architecture ARM v9 ARM v8.2
CPU Model Marvell CN10308 Marvell CN9670
CPU Cores 8 24
CPU Frequency 2.5 GHz 1.8 GHz
Default Memory 16 GB 32 GB
Memory Type DDR5 DDR5
Maximum Memory 48 GB 96 GB
Flash Storage 64 GB eMMC 64 GB eMMC
Optional SSD NVMe NVMe
Weight TBD 1 kg
Max. Power Consumption 60 W 100 W


  • Brand
  • Reference
    CX306P-48-M-H

Datasheet-CX306P-48Y-M-H-Smart-Switch

Download (1MB)
