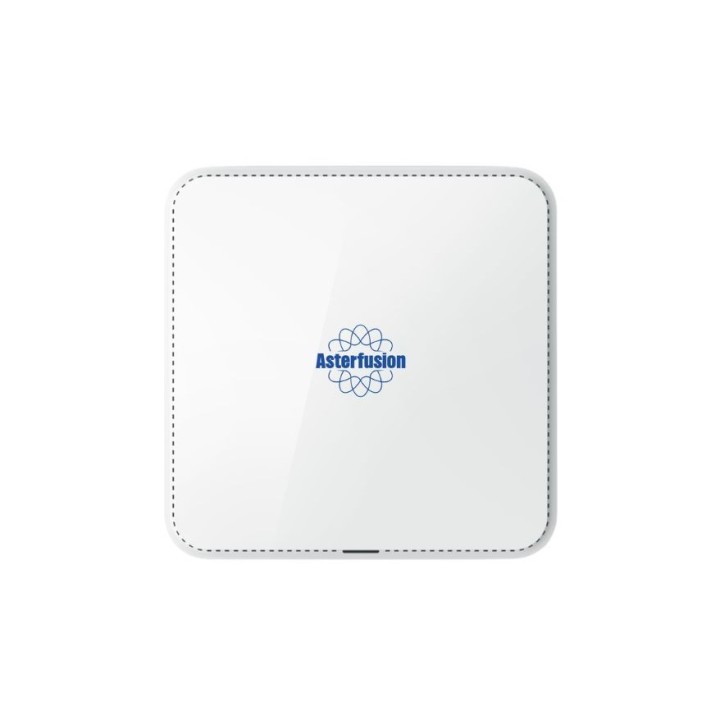

Indoor WiFi 7 Tri-Band Access Point | AP7360

AP7360, WiFi 7 (802.11be) Access Point – Tri-Band Indoor Ceiling Mount | OpenWiFi Compatible

Asterfusion
CHF531.85
Tax included

Experience next-gen wireless speed and flexibility with our Tri-Band WiFi 7 Access Point. Supports OpenWiFi for customizable network performance in enterprise and industrial environments.

  • Tri-band operation (2.4GHz / 5GHz / 6GHz)
  • 18 Gbps max throughput
  • PoE++ (802.3bt) and 10GbE SFP+ uplink
  • WPA3 + MPSK enhanced security
  • OpenWiFi support for open-source flexibility

Ceiling-Mounted Tri-Band Wi-Fi 7 (802.11be) 18 Gbps Wireless Access Point with Seamless Roaming

The AP7360 is a next-generation Wi-Fi 7 (802.11be) ceiling-mounted access point designed for high-density enterprise environments. Delivering over 18 Gbps of aggregate wireless throughput, it supports 150+ concurrent users, making it ideal for enterprise campuses, education, hospitality, and healthcare deployments.

Featuring a 4×4×4 MIMO architecture across 2.4 GHz, 5 GHz, and 6 GHz, the AP7360 leverages 160 MHz channels, 1024/4096-QAM, and OFDMA to provide ultra-high throughput, low latency, and reliable multi-user performance.

Equipped with a 10GbE RJ45 or SFP+ uplink and a 2.5GbE LAN port, it integrates seamlessly into modern network infrastructures. Compatible with TIP OpenWiFi controllers, including Asteria Controller, it enables centralized management and simplified wireless orchestration.

Ideal Use Cases

  • Enterprise Campuses
  • Hospitality & Large Venues
  • Smart Education
  • Healthcare Facilities
Specification Details
WAN Port 1 × 10G SFP+1 × 10/100/1000/2500/10000 Mbps RJ45
LAN Port 1 × 10/100/1000/2500 Mbps RJ45
Multiple SSIDs 8 per radio, 24 total
Input Power IEEE 802.3bt PoE54V DC / 1A input
MIMO 4 × 4 × 4
Maximum Power Consumption < 60 W
Wireless Standards IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Power Supply 54V DC / 1A
Recommended Clients 150+
Frequency Bands 2.4 GHz • 5 GHz • 6 GHz
Antenna Type Built-in omnidirectional antennas
Wireless Throughput Up to 18 Gbps
Antenna Gain 2.4 GHz: 4 × 1.7 dBi5 GHz: 4 × 4 dBi6 GHz: 4 × 4 dBi
Peak Data Rate 2.4 GHz: 688 Mbps5 GHz: 5,764 Mbps6 GHz: 11,528 Mbps
Coverage Radius 5–15 m
Maximum Transmit Power 2.4 GHz: 20 dBm5 GHz: 21 dBm6 GHz: 21 dBm
Operating Temperature -10°C to +55°C
Mounting Ceiling
Dimensions (H × W × D) 220 × 220 × 42 mm
Humidity 5%–95% (non-condensing)

  • Brand
  • Reference
    AP7360

Asterfusion access point feature comparison

Download (332.56KB)
